PRODUCT DESCRIPTION

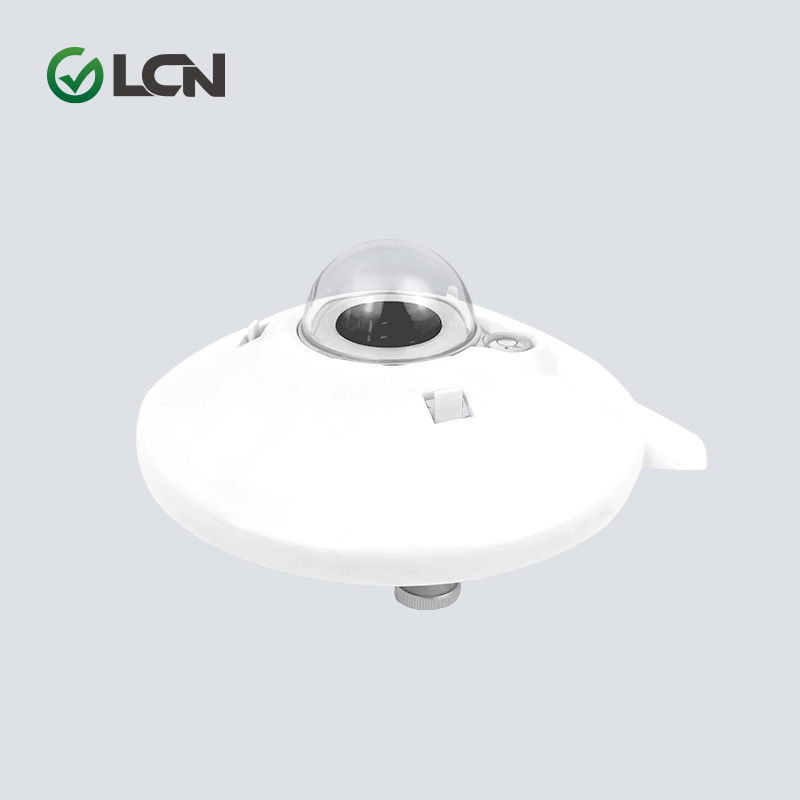

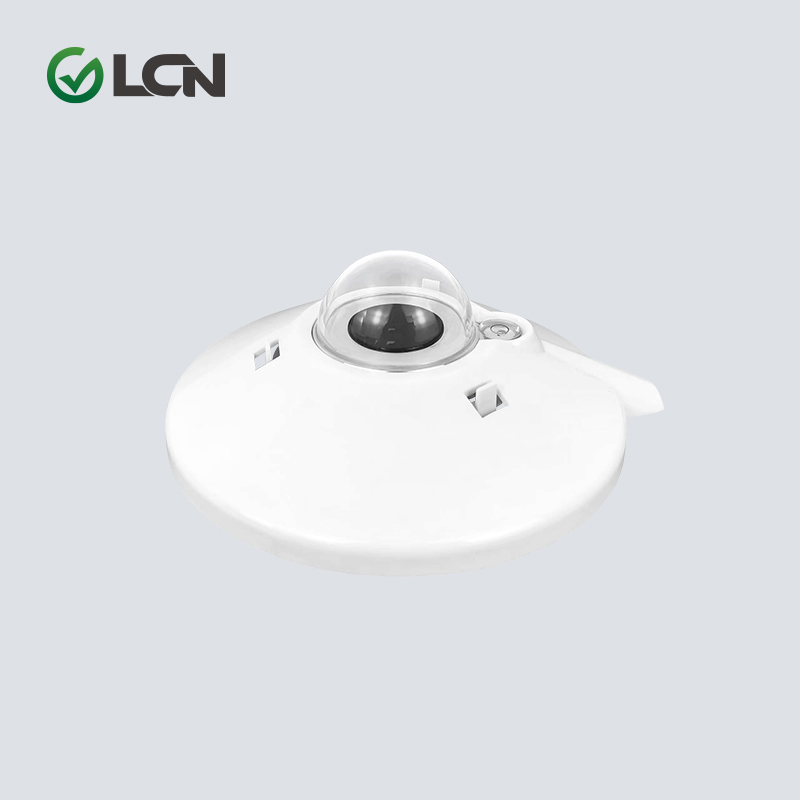

The TBQ-UV type ultraviolet radiation meter is a precision instrument used to measure solar ultraviolet radiation (UVAB wavelength range) in the atmosphere. When used in conjunction with data collectors, it provides information of public concern: UV index, UV erythema measurement, effects of UV on the human body, and special biological and chemical effects of UV. Therefore, it is highly valued in meteorology, industry, construction, and medicine, and is widely applied in research on redness caused by sun exposure, comprehensive environmental ecological effects, climate change, as well as UV monitoring and forecasting.

PRODUCT FEATURES

1.The product complies with WMO specifications, the ISO 9060:2018 international standard, and the ISO/IEC 17025 calibration standard

2. Moisture-proof and corrosion-resistant, suitable for various harsh environments to meet diverse customer needs.

3. Equipped with a built-in temperature compensation device to minimize the impact of temperature on the radiometer, featuring a specially treated coated filter with high cosine response for precise measurement.

4. Simple structure, easy installation, high load capacity, compact size, high-quality aviation connectors, waterproof cables.

SPECIFICATIONS

Spectral coverage	280～400nm(UVAB)，315～400nm(UVA)，280～315nm(UVB)
Signal range	0～300W/m2(UVAB)，0～300W/m2(UVA)，0～10W/m2(UVB)
Output signal	0～20mV，RS485
Sensitivity	10～500μV/W•m-2
Response time	≤10秒(99%)
Internal resistance	30Ω
Cosine response	≤4%(Sun altitude Angle 30)
Nonlinear	±2%
Operating ambient temperature	-50℃～+100℃
Work environment humidity	0%～100%RH
Weight	0.8kg(Excluding cables)

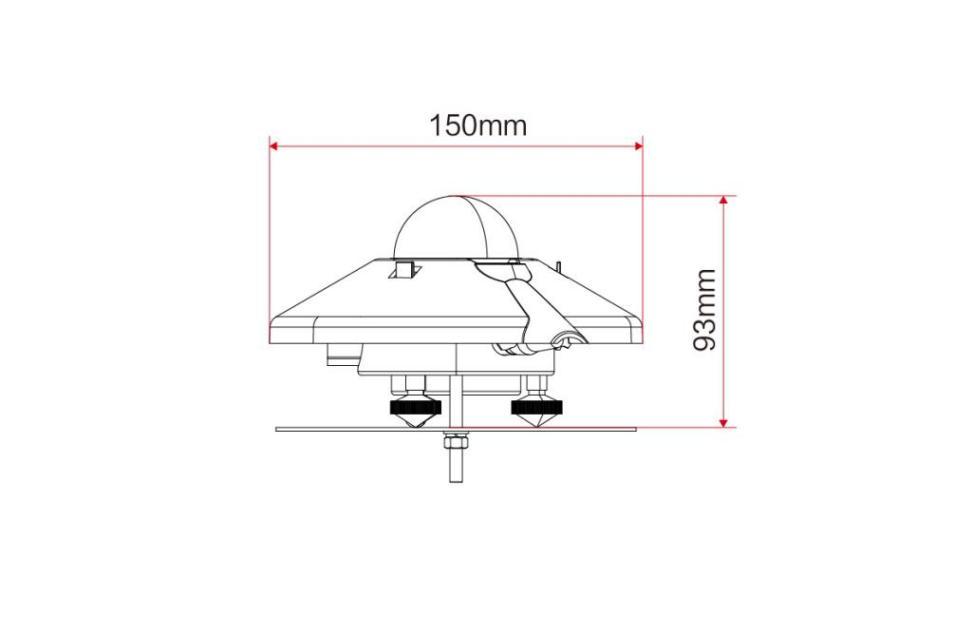

Product dimensions	Φ150×93(mm)
Product List	One solar ultraviolet radiation sensor A 3-meter cable
